Car AC Pressure Checker
If your car’s air conditioning used to blast icy air but now only blows warm or lukewarm air, you’re not alone. This is one of the most common summer complaints among drivers-and it’s usually fixable without a dealership bill. The problem isn’t always the compressor or a blown fuse. Often, it’s something simple you can check yourself in under an hour.
Check the refrigerant level first

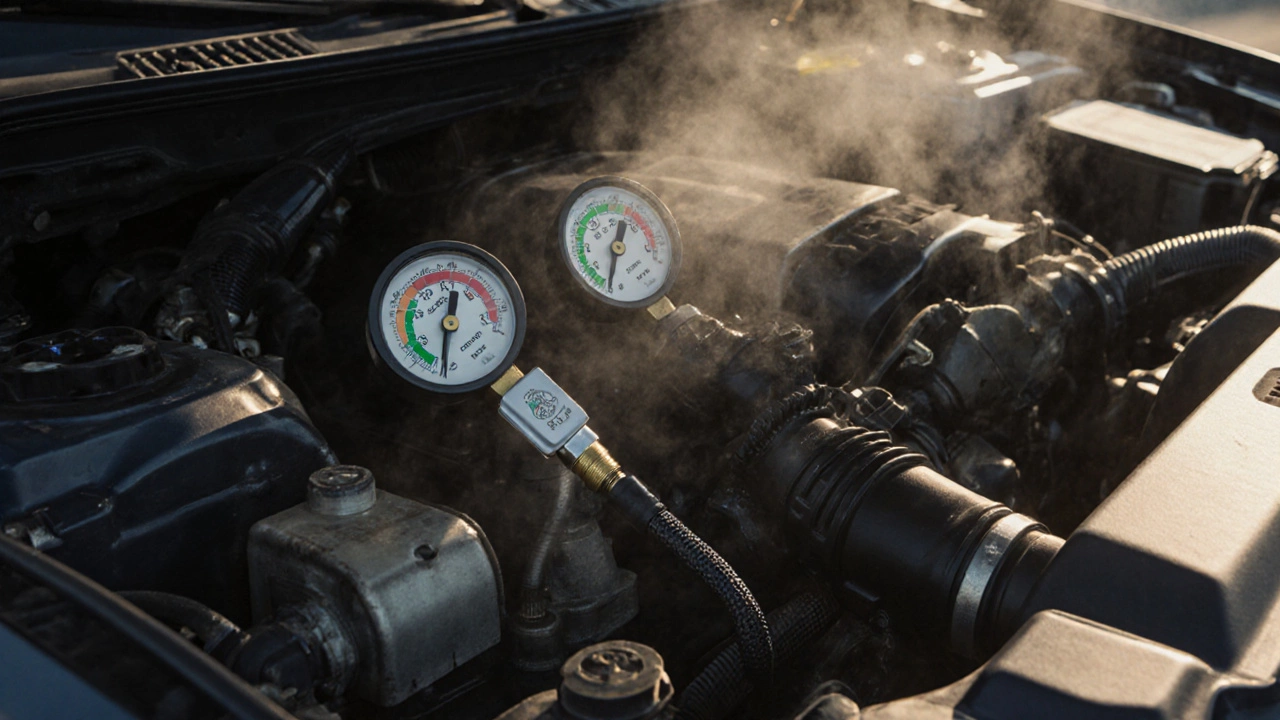

Most car AC systems lose a little refrigerant over time, but if your system is more than 5 years old and the air isn’t cold anymore, it’s likely low. R-134a is the standard refrigerant in most cars made before 2021. Newer models use R-1234yf, but if your car is older, you can buy a DIY recharge kit at any auto parts store for under $40.Don’t just buy the cheapest kit. Look for one with a pressure gauge. Overcharging is just as bad as undercharging. Too much refrigerant can damage the compressor. The correct pressure range for most cars is between 25 and 45 psi on the low side when the engine is running and the AC is on max. If the gauge reads below 20 psi, you need a recharge.
Before you recharge, make sure the engine is off and the car is cool. Attach the hose to the low-pressure port (it’s usually on the larger of the two lines near the firewall). Slowly release the refrigerant while the engine runs and the AC is on. Stop when the gauge hits the middle of the green zone. Let the system run for 10 minutes after recharging to let the refrigerant circulate.
Inspect the condenser for blockages
The condenser sits in front of your radiator and looks like a small radiator itself. It’s designed to release heat from the refrigerant so it can cool down and turn back into liquid. If it’s covered in bugs, leaves, dirt, or road grime, it can’t do its job.Pop the hood and look at the condenser. If it’s caked in debris, use a garden hose with a gentle spray-not a pressure washer-to rinse it from the front side, pushing debris out the back. Do this when the engine is cool. A dirty condenser can cut cooling efficiency by up to 40%.
Also check for bent fins. If you see any, gently straighten them with a fin comb (available for under $15 online). Bent fins reduce airflow and cause the system to work harder, leading to overheating and early failure.
Test the AC compressor clutch
When you turn on the AC, you should hear a clicking sound and see the compressor pulley engage. The center of the pulley should spin with the engine. If it stays still while the outer belt spins, the clutch isn’t engaging.Common causes:
- Low refrigerant (the system won’t engage if pressure is too low)
- Faulty clutch coil
- Blown fuse or bad relay
- Failed pressure switch
Start with the basics. Check the fuse box-look for the AC or A/C fuse. It’s usually labeled. Replace it if it’s blown. If the fuse is fine, try swapping the AC relay with another one in the box (like the horn relay) to test. If the compressor still doesn’t engage, you may need a professional to test the clutch coil with a multimeter.
Check the cabin air filter
Most people forget this one. The cabin air filter sits behind the glovebox or under the dashboard and traps dust, pollen, and debris before it enters the AC system. If it’s clogged, airflow is reduced-even if the refrigerant is full.Replace it every 12,000 to 15,000 miles, or more often if you drive in dusty areas. A dirty filter can make your AC feel weak even when everything else is working. You can find the exact filter for your car model on Amazon or at AutoZone using your VIN. Installation usually takes 10 minutes with a screwdriver.
Look for refrigerant leaks
If you’ve recharged the system and it’s cold for a week, then goes warm again, you have a leak. Common leak points:- AC hose connections
- Compressor shaft seal
- Evaporator core (inside the dashboard)
- Condenser damage from road debris
You can buy a UV dye kit for under $30. Add it to the system during a recharge, then run the AC for a few days. Use a UV flashlight (also sold in the kit) to scan under the hood and around the dashboard. Green or yellow stains mean you found the leak.
Small leaks at hose fittings can often be fixed with a sealant. But if the leak is from the evaporator or compressor, you’ll need a mechanic. Evaporator replacement can cost $800-$1,500 because it requires pulling the dashboard apart.
Make sure the blend door isn’t stuck
The blend door controls how much air passes through the heater core versus the evaporator. If it’s stuck in the heat position, you’ll get warm air even when the AC is on.This is common in older cars with vacuum-operated systems or electric actuators. Symptoms: the air feels cool at first, then slowly warms up. Or, the temperature dial doesn’t change the output.
Try cycling the temperature control from full cold to full hot several times while the car is running. Sometimes this frees up a stuck door. If that doesn’t work, you may hear a clicking or grinding noise from behind the dash. That’s the actuator failing. Replacing it requires removing part of the dashboard-best left to a pro.
Don’t ignore the radiator
Your car’s radiator and AC condenser share the same airflow path. If your radiator is clogged, overheating, or the cooling fan isn’t working, the condenser can’t release heat effectively. That means the refrigerant stays hot and can’t cool the cabin.Check your engine temperature gauge. If it runs higher than normal, especially at idle or in traffic, the cooling system is struggling. A bad radiator fan, clogged radiator, or failing water pump will all hurt AC performance.
Flush the radiator every 30,000 miles or every 2 years. If you’ve never done it, and your car has over 60,000 miles, it’s probably overdue. A clean radiator helps the AC work better-and prevents engine damage.
When to call a mechanic
You can fix most AC problems yourself: recharge refrigerant, clean the condenser, replace the cabin filter, swap a fuse. But if you’ve done all that and the AC still doesn’t blow cold, it’s time to see a professional.Red flags:
- AC blows cold for a few minutes, then warm
- Strange noises from the compressor
- Oil or refrigerant leaking under the car
- AC only works when driving, not at idle
These point to internal failures: compressor breakdown, blocked expansion valve, or a failing evaporator. Repairing these requires specialized tools and refrigerant recovery equipment. Don’t try to fix them yourself.
Prevent future problems
The best way to avoid a broken AC is to use it regularly-even in winter. Run the AC for 10 minutes every couple of weeks. This keeps the seals lubricated and prevents leaks.Also, replace the cabin air filter on schedule. Keep the condenser clean. And never ignore a strange smell-mold or mildew in the vents means moisture is trapped in the evaporator. Use an AC deodorizer spray designed for automotive systems to kill bacteria and prevent odors.
With regular care, your car’s AC should last 10-15 years. Most failures happen because owners wait too long to act. Don’t wait until July to fix it. Check it now, before the heat hits.
